1. Deploy Ingress Controller

  • View Kubernetes version

    1
    2
    3
    4

    kubectl version --short

    Client Version: v1.21.4
    Server Version: v1.21.4

  • Find a compatible version of Nginx Ingress

    Helm Chart version Helm Chart Highest Available Version K8s Adaptor Version
    3.x.x 3.36.0 1.16+
    4.x.x 4.4.2 1.19+

    Reference: https://github.com/kubernetes/ingress-nginx

  • Installing Nginx Ingress Controller

    1
    2
    3

    helm upgrade --install ingress-nginx ingress-nginx \
    --repo https://kubernetes.github.io/ingress-nginx \
    --namespace ingress-nginx --create-namespace --version v4.4.2

  • Check out the services

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    kubectl -n ingress-nginx get svc

    NAME                                 TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
    ingress-nginx-controller             LoadBalancer   10.233.11.232   <pending>     80:30914/TCP,443:31493/TCP   14m
    ingress-nginx-controller-admission   ClusterIP      10.233.56.67    <none>        443/TCP                      14m
    kae@node1:~$ kubectl -n ingress-nginx get pod,svc
    NAME                                            READY   STATUS    RESTARTS   AGE
    pod/ingress-nginx-controller-666f45c794-h2zk9   1/1     Running   0          14m

    NAME                                         TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE
    service/ingress-nginx-controller             LoadBalancer   10.233.11.232   <pending>     80:30914/TCP,443:31493/TCP   14m
    service/ingress-nginx-controller-admission   ClusterIP      10.233.56.67    <none>        443/TCP                      14m


2. Add the secret key

  • Generate the secret key

    1
    2
    3

    htpasswd -nb 'admin' 'xxxxxx' | base64

    xxxxxxxxxxxxxxxxxxxxxx


    Login user admin, login password xxxxxx.

  • In the namespace where the service is located, add the credentials

     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    cat <<EOF | kubectl apply -f -
    apiVersion: v1
    kind: Secret
    type: Opaque
    metadata:
    namespace: longhorn-system
    name: basic-auth
    data:
    auth: "xxxxxxxxxxxxxxxxxxxxxx"
    EOF


3. Add Ingress forwarding rules

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
cat <<EOF | kubectl apply -f -
kind: Ingress
apiVersion: networking.k8s.io/v1
metadata:
name: longhorn-ingress
namespace: longhorn-system
annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/auth-type: basic
    nginx.ingress.kubernetes.io/auth-secret: basic-auth
    nginx.ingress.kubernetes.io/auth-realm: "Authentication Required"
spec:
rules:
- host: longhorn.chenshaowen.com
    http:
    paths:
    - path: /
        pathType: Prefix
        backend:
        service:
            name: longhorn-frontend
            port:
            number: 80
EOF

nginx.ingress.kubernetes.io/auth-type: basic and nginx.ingress.kubernetes.io/auth-secret: basic-auth specify that the authentication method is Basic and the authentication secret key is basic-auth.

4. Accessing services

  • Add hosts to the access host pointing to the cluster host

    The domain name is the hosts configured in Ingress, in this case longhorn.chenshaowen.com.

  • Access to services using domain names

    Since Ingress Controller maps its port 80 to 30914 on the host, the service is accessed at longhorn.chenshaowen.com:30914.

    Access to services using domain names

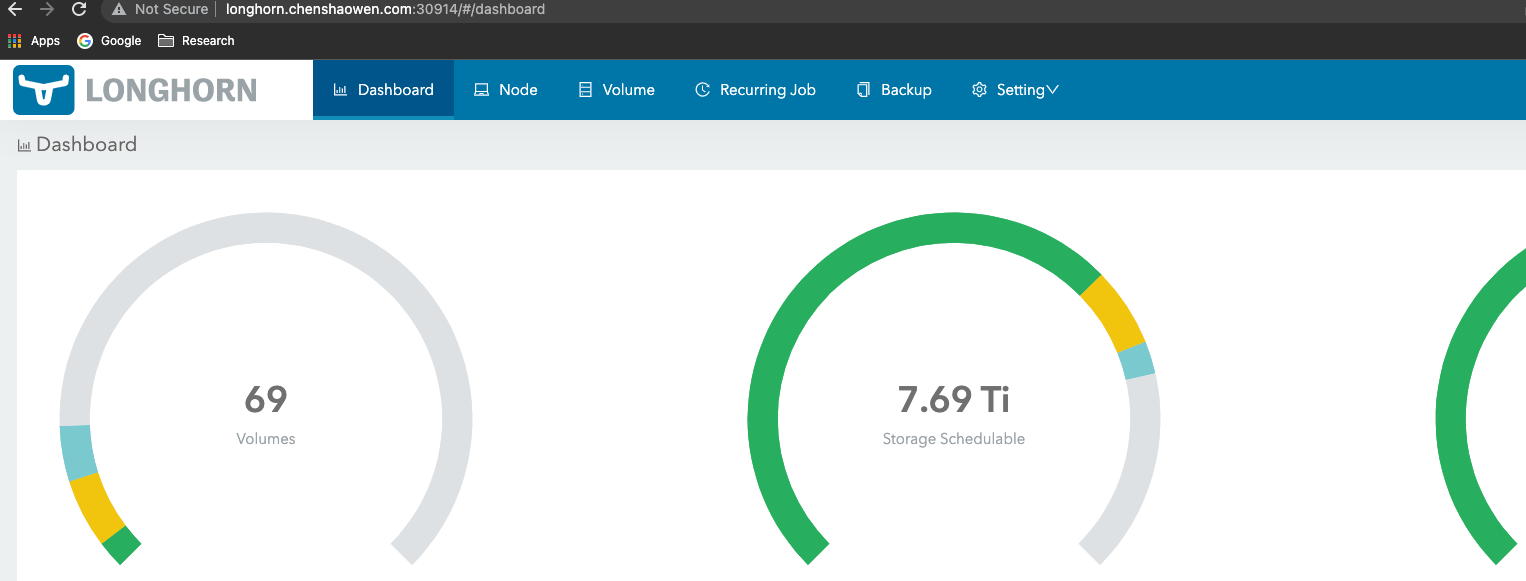

    Enter the account admin and password xxxxx to view the service. The image below.

    service
