1. A comparison of several common gateways

  • Nginx, modular reverse proxy software, developed in C
  • OpenResty, a Nginx-based web development platform that parses and executes Lua scripts
  • Kong, an application of OpenResty, is an API gateway with API management and request proxy functions, using PostgreSQL storage
  • APISIX, which replaces Kong’s PostgreSQL for Etcd, based on Nginx’s core library implementation

The advantage of APISIX is that it provides API management and extension capabilities, allowing the gateway to be configured and customized instead of just forwarding services. Compared to Nginx, APISIX uses dynamic routing, avoiding the risk of reloading after configuration. At the same time, APISIX supports more protocols such as HTTP(S), HTTP2, Dubbo, QUIC, MQTT, TCP/UDP, etc., providing a better usage ecosystem.

APISIX

Above is the architecture of APISIX, where the data plane handles the client requests and the control plane manages the routes.

2. What problems APISIX can solve

  • Edge routing

The number of access portal IPs exposed to the public by the server room is usually very small, but supports many services. For example, the access IP is 1.2.3.4, but provides access to a.domain.com, b.domain.com at the same time. This requires the use of edge routing, which will take access to different domains and forward them to different intranet addresses.

There are three ways to register edge routes in APISIX, dashboard, ingress-controller, and admin api.

  • Basic gateway capability

The function of gateway is not limited to forwarding traffic, but more importantly, limiting traffic, fusing, etc.

APISIX has many built-in plug-ins that provide APM, logging, fusion, authentication, certificate management, fault injection, and other functions. It also supports drag-and-drop combination of new plug-ins and development of new plug-ins to meet business needs.

  • Serverless

APISIX provides Serverless by means of plug-ins, and currently only supports Lua, but the combination of APIGateway + Serverless is very imaginative.

With Serverless, you can quickly provide a service-free API to the outside world, bond various services, and also provide functional services directly to the outside world.

  • Grayscale release

Thanks to the control of the gateway layer, APISIX allows users to control the forwarding behavior of traffic by configuring weights, which can be used for grayscale distribution.

3. Installing APISIX on Kubernetes

3.1 Adding the Helm source

  • Add the Helm source
1
2
helm repo add apisix https://charts.apiseven.com
helm repo update
  • Find a Chart package
1
2
3
4
5
6
helm search repo apisix

NAME                            	CHART VERSION	APP VERSION	DESCRIPTION
apisix/apisix                   	0.3.5        	2.7.0      	A Helm chart for Apache APISIX
apisix/apisix-dashboard         	0.1.5        	2.7.0      	A Helm chart for Apache APISIX Dashboard
apisix/apisix-ingress-controller	0.5.0        	1.0.0      	Apache APISIX Ingress Controller for Kubernetes

3.2 Installing APISIX

  • Installing APISIX
1
helm install apisix apisix/apisix  --set gateway.type=NodePort --set admin.allow.ipList="{0.0.0.0/0}"  -n apisix --create-namespace
  • View the entrance address
1
2
3
4
5
export NODE_PORT=$(kubectl get --namespace apisix -o jsonpath="{.spec.ports[0].nodePort}" services apisix-gateway)
export NODE_IP=$(kubectl get nodes --namespace apisix -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT

http://1.1.1.1:32462

The entry address here is the entry address of the backend service. If you are generating an environment, you should use the address provided by LoadBalancer.

  • View apisix-admin interface key
1
2
3
4
5
6
7
export POD_NAME=$(kubectl get pods --namespace apisix -l "app.kubernetes.io/instance=apisix,app.kubernetes.io/name=apisix" -o jsonpath="{.items[0].metadata.name}")

kubectl -n apisix exec -it $POD_NAME cat conf/config.yaml |grep key

  admin_key:
      key: edd1c9f034335f136f87ad84b625c8f1
      key: 4054f7cf07e344346cd3f287985e76a2

The first key is admin and the second key is viewer. this key can be used to configure APISIX via the admin api, providing an entry point for other systems to integrate with APISIX.

3.3 Installing Dashboard

  • Installing Dashboard
1
helm install apisix-dashboard apisix/apisix-dashboard -n apisix --create-namespace

The default account is: admin The default password is: admin

  • View Dashboard Access Portal
1
2
3
4
5
export NODE_PORT=$(kubectl get --namespace apisix -o jsonpath="{.spec.ports[0].nodePort}" services apisix-gateway)
export NODE_IP=$(kubectl get nodes --namespace apisix -o jsonpath="{.items[0].status.addresses[0].address}")
echo http://$NODE_IP:$NODE_PORT

http://1.1.1.1:31501

3.4 Installing ingress-controller

  • Install ingress-controller
1
helm install apisix-ingress-controller apisix/apisix-ingress-controller   --set config.apisix.baseURL=http://apisix-admin:9180/apisix/admin  --set config.apisix.adminKey=edd1c9f034335f136f87ad84b625c8f1  -n apisix

Here you will need to set the admin key obtained above, and in fact the ingress-controller also configures the route by calling the admin api.

4. Create service tests

As mentioned earlier, APISIX has three ways to configure routes via the admin api. Here we will verify the use of Dashboard and Ingress.

  • Create a service
1
kubectl create deployment web --image=gcr.io/google-samples/hello-app:1.0
  • Exposure Services
1
kubectl expose deployment web --type=NodePort --port=8080
  • View Services
1
2
3
4
kubectl get service web

NAME   TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
web    NodePort   10.233.58.113   <none>        8080:30572/TCP   28d

4.1 Dashboard Configuration Routing

  • Create a new upstream service

Here you need to fill in the cluster access address created above: web.default.svc.cluster.local

Create a new upstream service

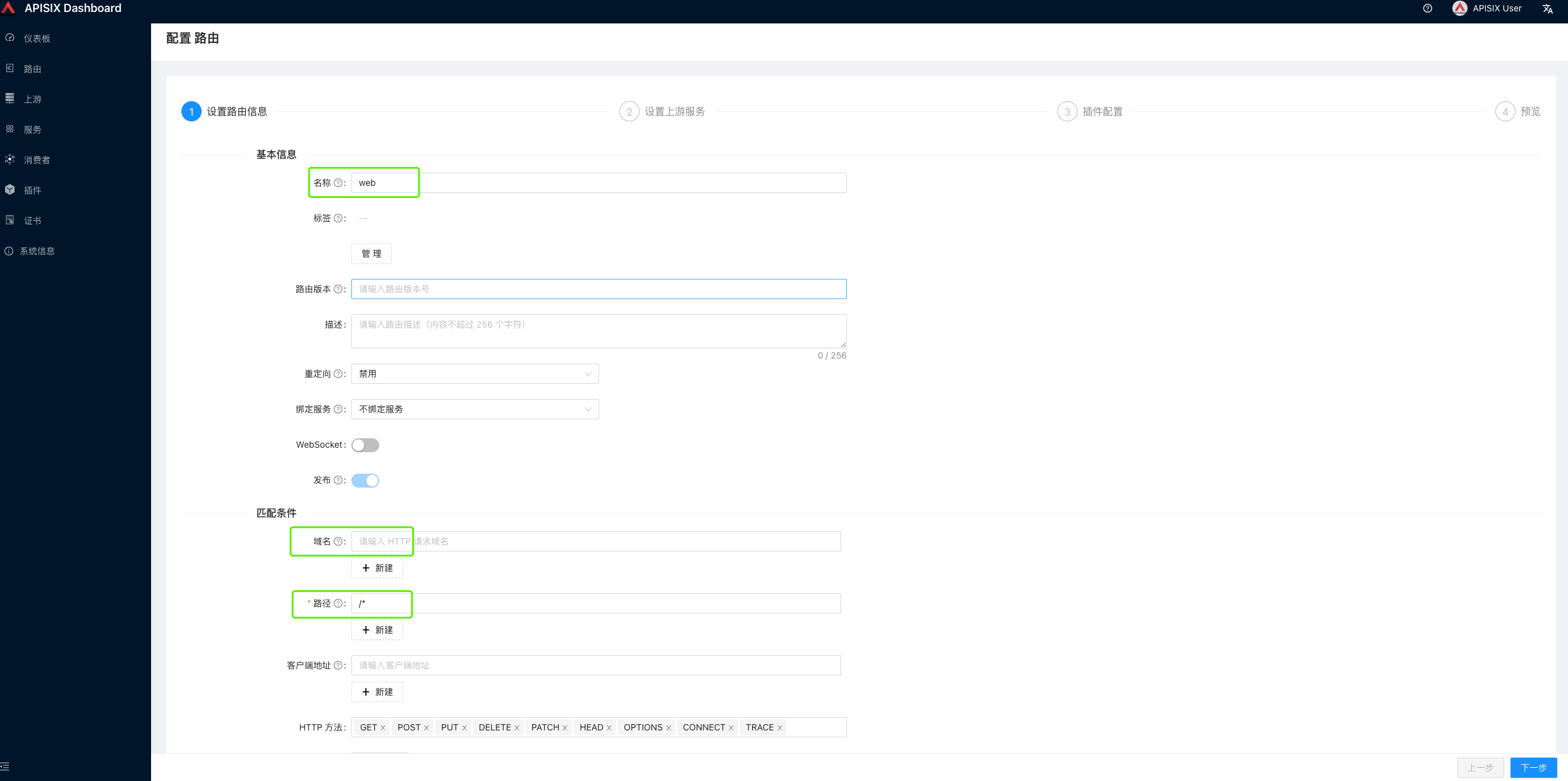

  • Create a new route

Create a new route

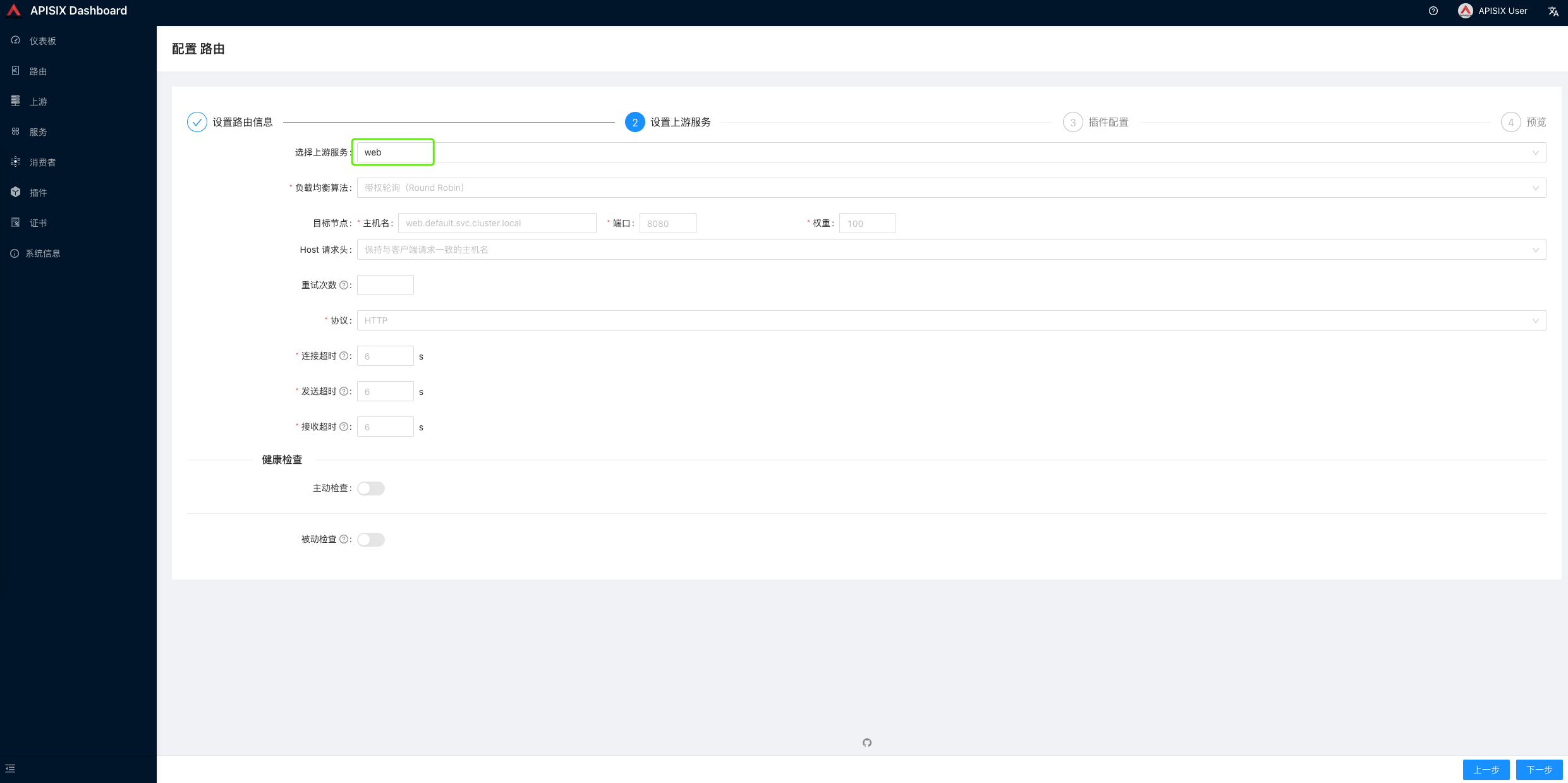

After clicking Next, select the service web created above and the relevant parameters will be populated automatically.

Create a new route

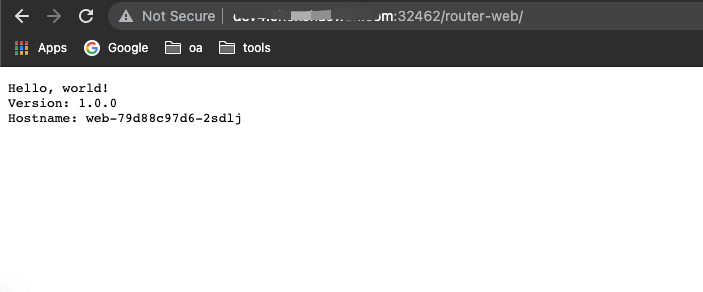

  • Access test

test

4.2 Ingress Configuration Routing

  • Create an ApisixRoute route

Although the ingress-controller component is deployed here, it is the ApisixRoute object that is created when it is used.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
apiVersion: apisix.apache.org/v1
kind: ApisixRoute
metadata:
  name: web-route
spec:
  http:
  - name: web
    match:
      hosts:
      - dev4.chenshaowen.com
      paths:
      - "/router-web/*"
    backend:
     serviceName: web
     servicePort: 8080
  • Access test

test

  • View the created routes

View the created routes

You can find that the route is managed by ingress-controller and should not be edited manually.

  • View Services

View Services

You can see that the service is mainly provided by four backends.

  • View the IP of the Service Pod
1
2
3
4
5
6
7
kubectl get pod  -o wide

NAME                   READY   STATUS    RESTARTS   AGE   IP              NODE    NOMINATED NODE   READINESS GATES
web-79d88c97d6-2sdlj   1/1     Running   0          27d   10.233.105.34   node4   <none>           <none>
web-79d88c97d6-7bfbb   1/1     Running   0          27d   10.233.105.32   node4   <none>           <none>
web-79d88c97d6-hccqk   1/1     Running   0          27d   10.233.105.33   node4   <none>           <none>
web-79d88c97d6-mh9gz   1/1     Running   0          28d   10.233.105.22   node4   <none>           <none>

APISIX will use the IP address of the Pod as the traffic backend directly without going through Service forwarding, which is different from Kubernetes’ service forwarding and load balancing mechanism.

5. Summary

In this article, we have briefly described the differences between several gateways, thought about what APISIX can do to help us solve our problems, and finally put it into practice on Kubernetes. The content is as follows.

  • APISIX is an API gateway application implemented based on the Nginx network library, using Etcd as the storage backend
  • APISIX can be used as an edge route, and its dynamic nature avoids the jitter caused by Nginx reloads.
  • APISIX provides an admin api to manage routes, and there are three ways to configure it
  • APISIX under Kubernetes skips the Kubernetes Service and forwards traffic directly to the Pod IP
